Injection Mold Puch Rob Limit Seat

Automobile Industry

Product Specification:
  • :
Inquiry Now
Product Details

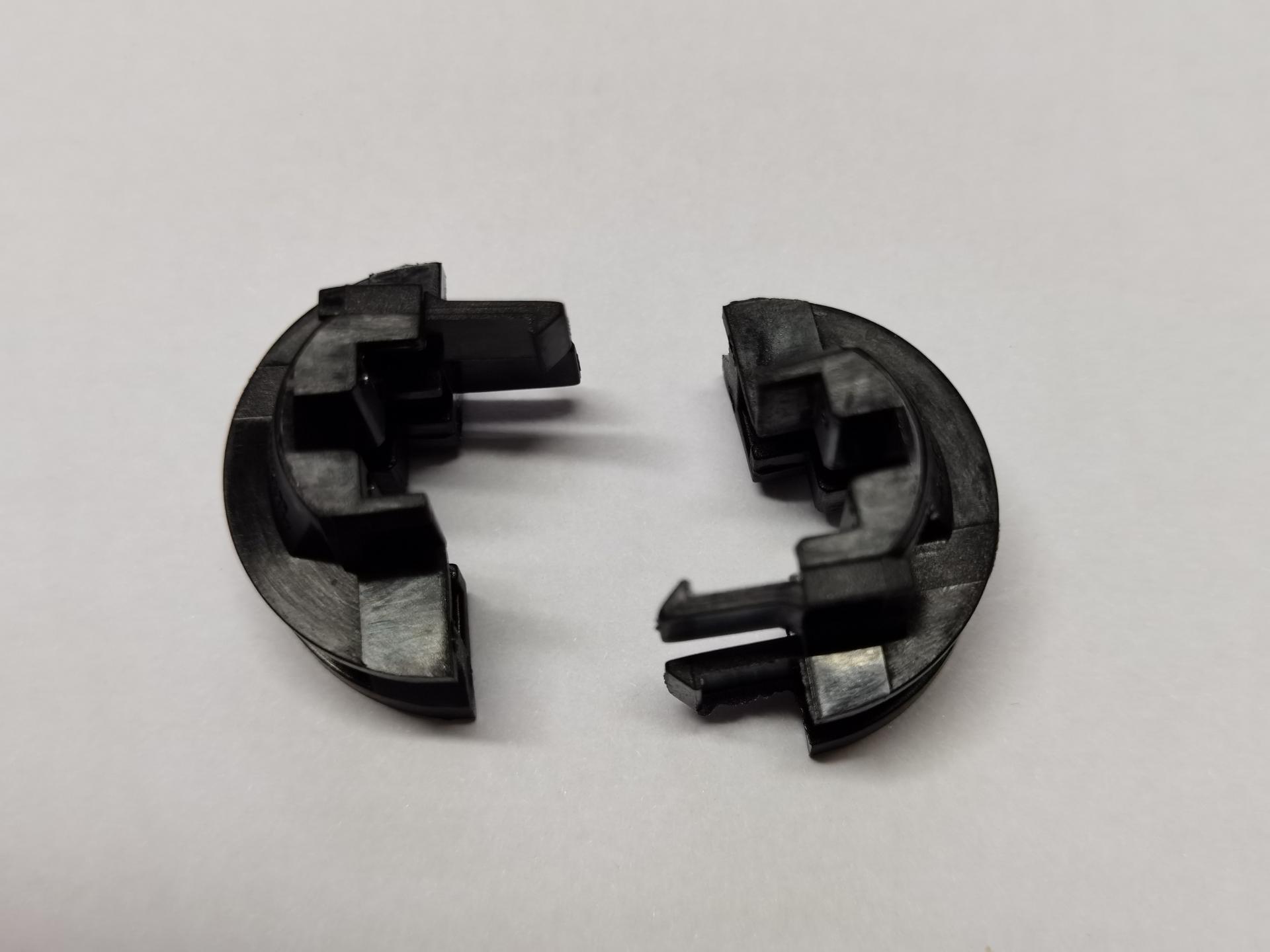

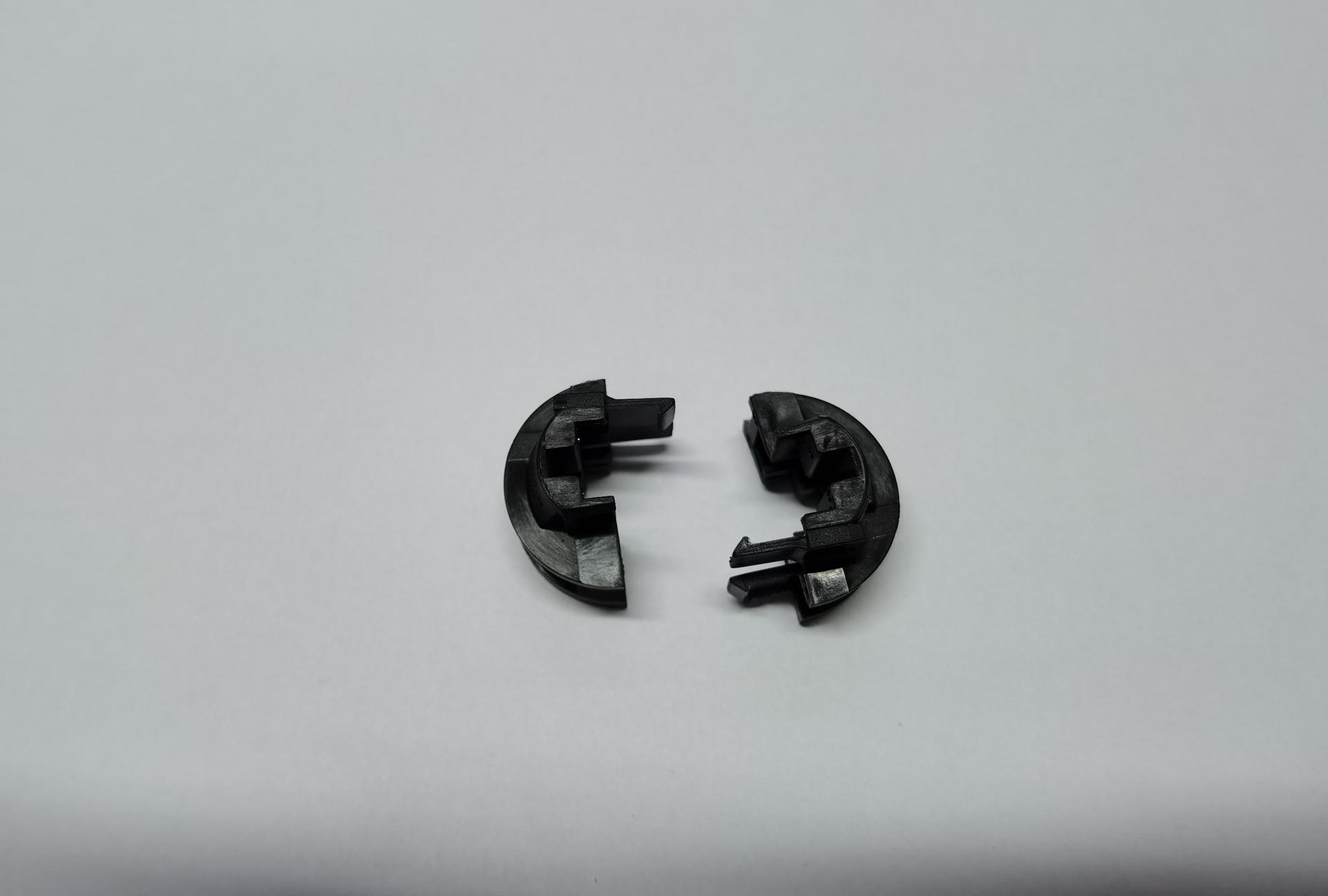

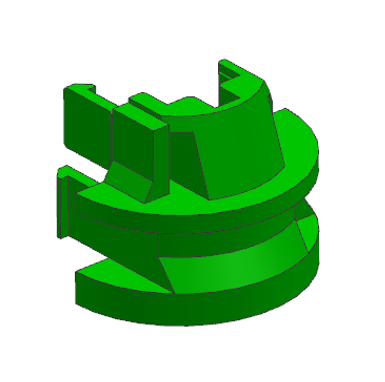

Product Name: Puch Rob Limit Seat
Product dimensions: 26mm*20mm*20mm
Material:ABS PA66-GF35
Weight: 3.4g

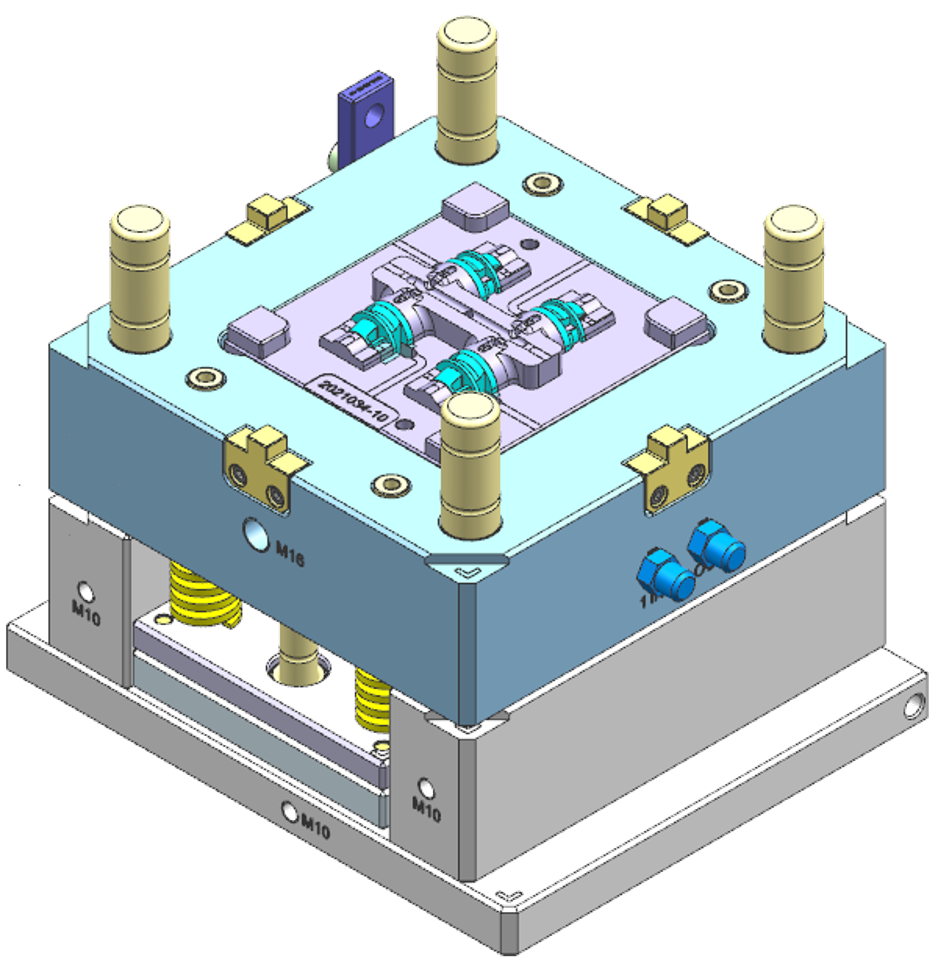

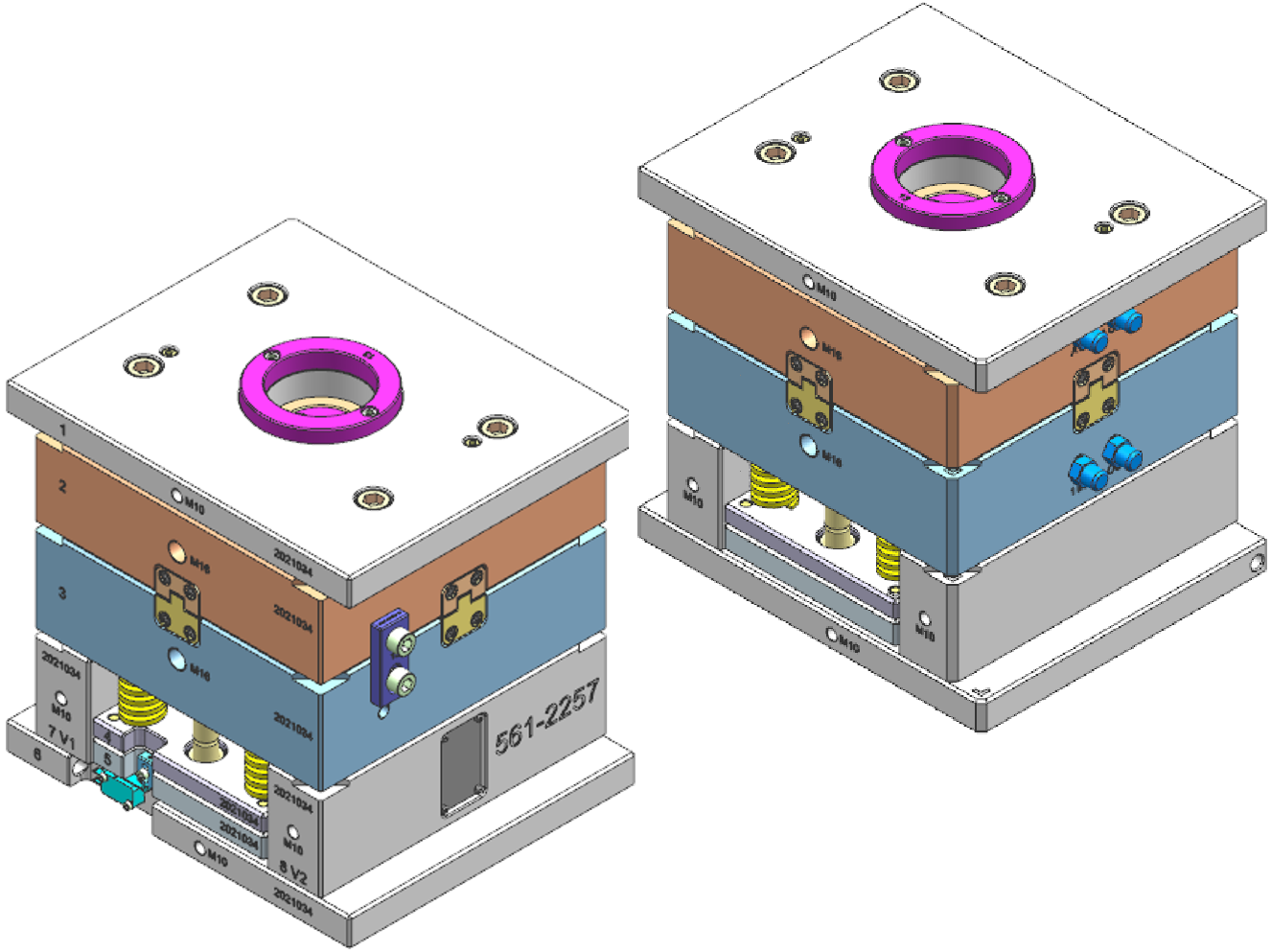

Forms Dimensions: 685.8 * 914.4 * 666.1 mm

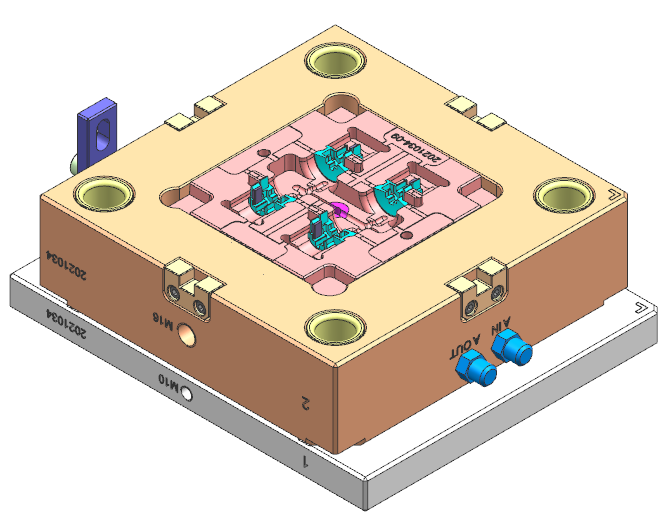

Core material: 1.2344
Slide type: 0

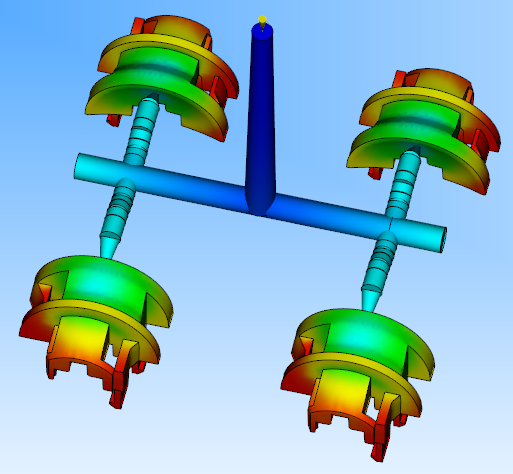

Sprue type: Hot runner with tunnel sprue
Cooling type: oil
Ejector type: Mechanically
Cavity: 1+1
